1
That's so cool trying new materials and techniques.

I love doing that, too.

Interesting how your process is... I like to see those 'behind the scenes' things that happened like how plan A doesn't work so you have to go to plan B.

Happens a lot when I'm doing things for the first time as well... you think plan A is definitely going to be 'it' (that's why you made it plan A, lol) but then it doesn't go down as expected. Like when Anakin met Grievous for the first time and he wasn't as tall as expected.  :cheesy:

BTW: Really loving that cut metal part! Great idea and execution with that
2
Forum Gallery / Re: GUNDAM beamsaber inspired hilt
« Last post by snilam on October 21, 2018, 07:11:33 PM »
thanks everyone for the kind words  :azn:
3
The Expanded Universe / Star Wars Resistance TV show
« Last post by Darthlwin on October 21, 2018, 06:14:29 PM »
Anyone see Star Wars Resistance?
I just saw an episode and was wondering what everyone thinks about it.
Also didn't see any other threads on it but I might have missed it.
4
New Ideas and Technologies / Re: S.T.R.E.A.M.
« Last post by Sethski on October 21, 2018, 07:28:41 AM »
This has come along fantastically!

Thanks so much for your talent and work and sharing 'em.

I've been 'out of the game' for a bit, but I do have (I think a couple of) DIYino Prime V1 boards which need to be put to use. I really look forward to playing with them and this  :smiley:
5
Forum Gallery / Re: GUNDAM beamsaber inspired hilt
« Last post by Sethski on October 21, 2018, 07:21:58 AM »
Really stunning! Top notch work in all respects - thanks for sharing  :smiley:
6
Spacewindu / Re: Black Mamba for Pfockerchief
« Last post by Sethski on October 21, 2018, 07:19:40 AM »
That really is something else! WOW!  :huh:
7
Saber Modifications & Customs / Re: 2nd scratch built custom saber build log
« Last post by Sethski on October 21, 2018, 07:17:30 AM »
Also...

Part of my intention for the saber and specifically the mid section has been to have some sort of wooden overlay/shroud.

As it's had a bit of an insectile/skeletal look/feel come together as part of the aim, I decided to try and make something reminiscent of insect wings or wing casings for this.

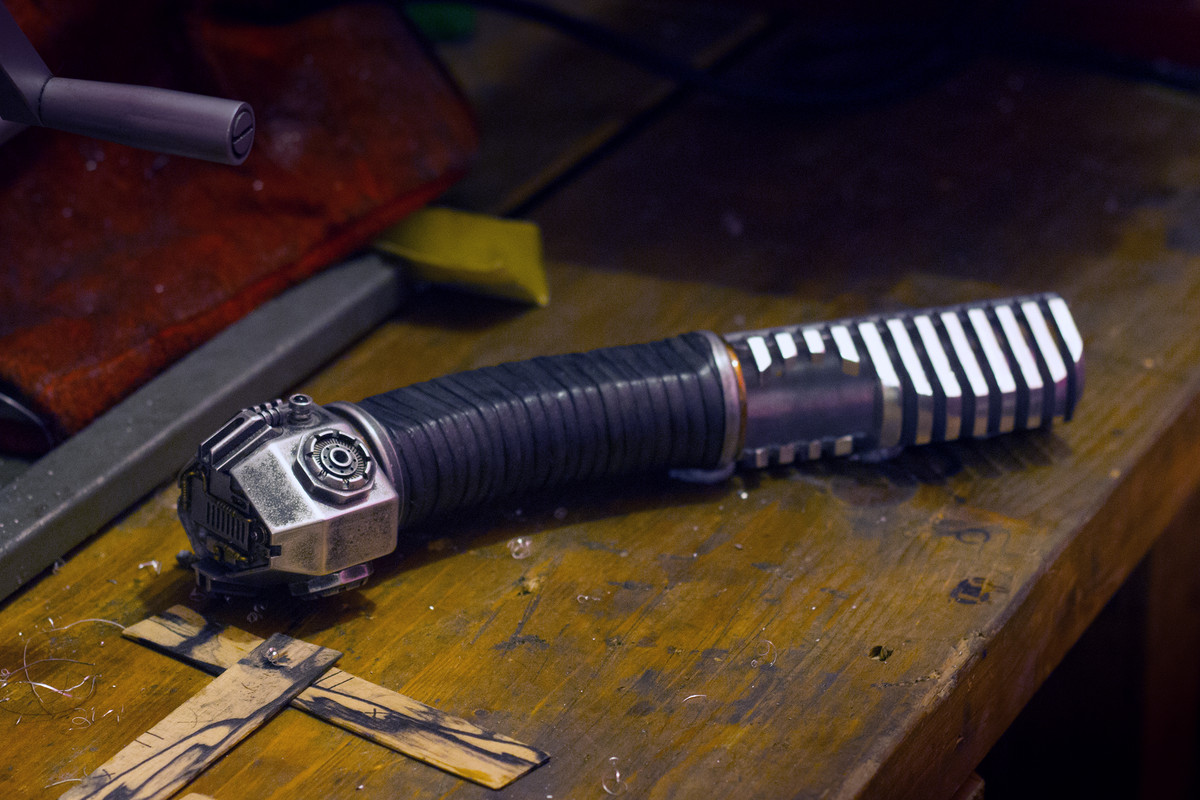

I still don't know what to do with the front end, but took a photo of current where parts so far are at roughly mocked up together:



You can see a couple of the pieces of wood 'veneer' by it.

I'd found some lovely wood on eBay a bit ago described as 'black and white ebony' or 'pale moon ebony'. I bought it after lots of internetting to see what else was available and prices and couldn't find anything that I liked as much, so I coughed up and bought it (it was about 20, so not crazy, but well worth shopping around before buying, I thought). It was 2 'book matched' pieces - with the two sides of the cut roughly mirroring each other, which I thought would be great to somehow integrate so they mirrored each other on both sides of the saber. The original photo on eBay made the wood look more monochrome and less brown/woody than it was in person:



It was about 1.5cm thick so , for want of having a bandsaw or other tools more suited to the job, I milled it as thin as I could (a little over 1mm), leaving enough structure to keep a 'frame' to hold the shape. The intention was to try and steam bend the wood, which I'd come acros some info on looking into how to bend wood.

For the quarter circle I wanted (12.5mm radius, matching the corner rounding mill I used for the top curves of the mid body part), it turned out I could get two pieces for each side, so I thought at best it'd be cool to have two layers/'wings' on each side, and also that it'd give me a couple of test pieces which would still leave me with a second chance and two good pieces if something went wrong with the process of trying to bend them.

I thought it's probably snap the way this is conventionally done and that perhaps making some sort of press/jig type thing would apply pressure more evenly and so would be more likely to succeed, so I made a little press type thing, with the idea of steaming the wood and then feeding it in, tightening the bolts down, opening it to feed a bit more in, repeated until the whole piece was curved if it went as hoped.

This was the makeshift press thing:

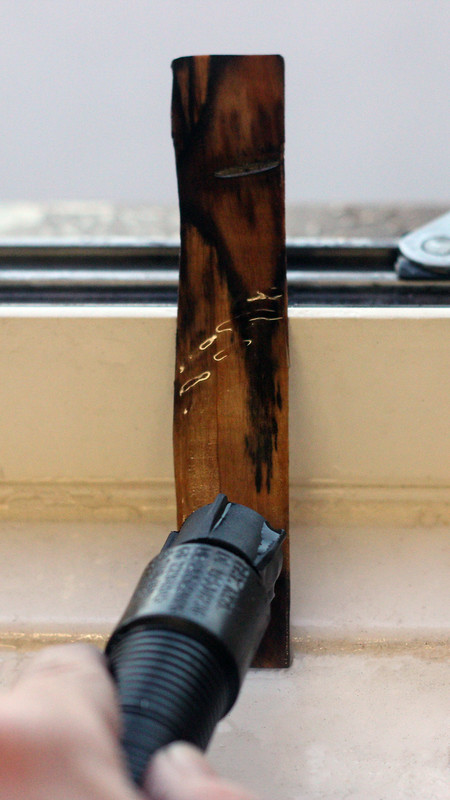

So I steamed the first piece of wood for about 10 minutes with a wall paper steamer:

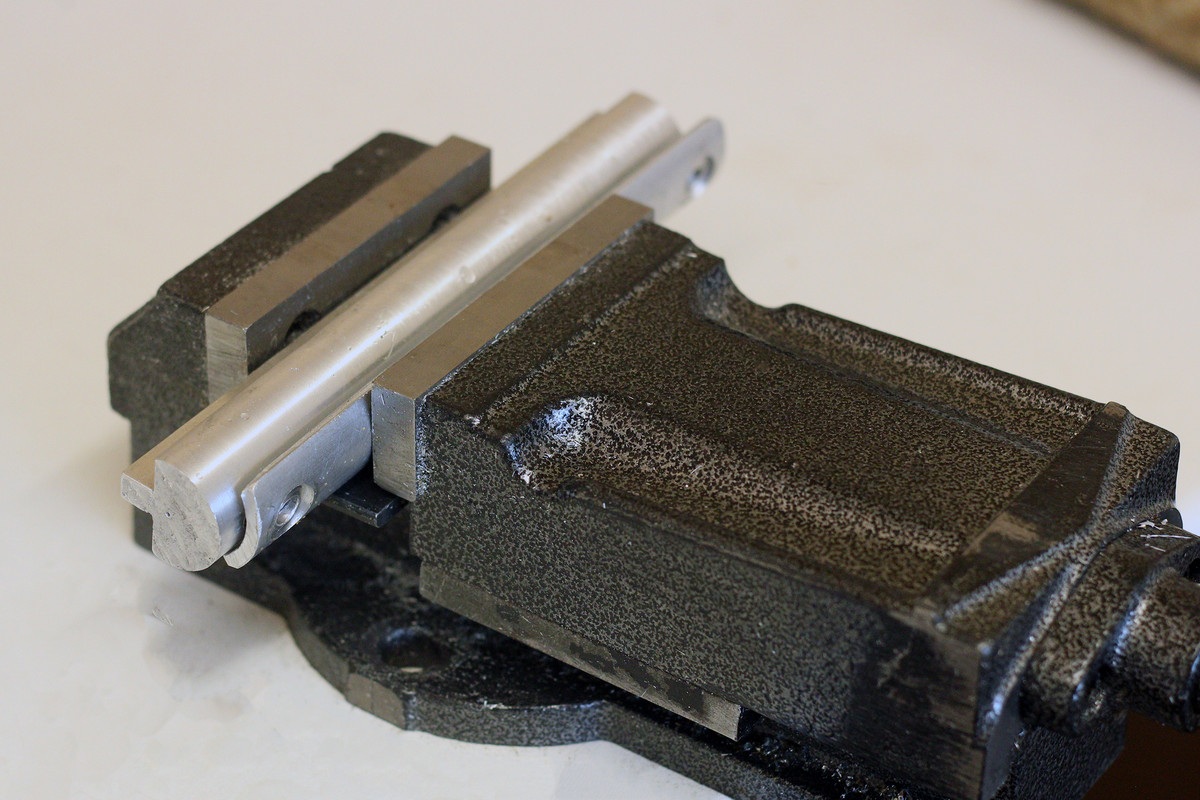

...and the press thing just didn't work very well at all, which was disappointing  ??? the wood softened a bit and it did curve a bit, but the aluminium wasn't fully holding it's shape and or pressing down evenly along the length or something - whatever was going on, it wasn't working as I'd hoped! ...so I (frantically) thought of a plan b and tried it with the parts of the 'press' just squeezed in a vice with the wood - which, thankfully, worked better (like this, but with the wood in there and a heavy mist of steam and me dashing around and swearing a lot):

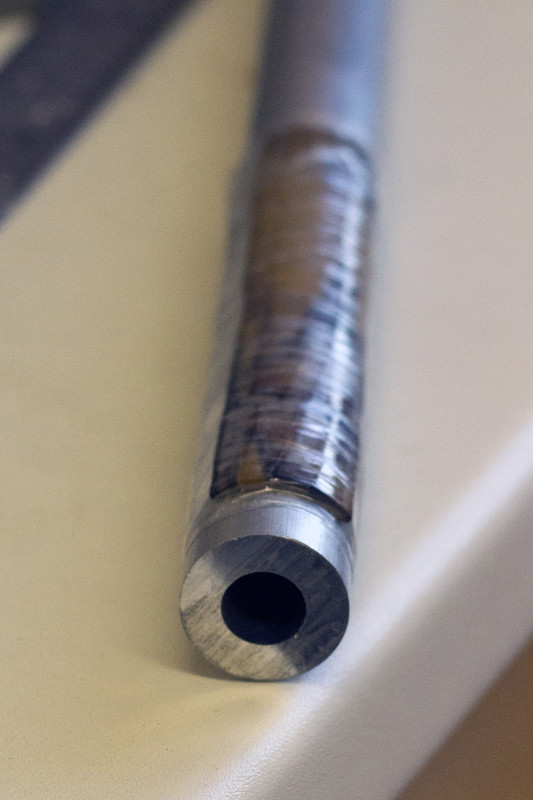

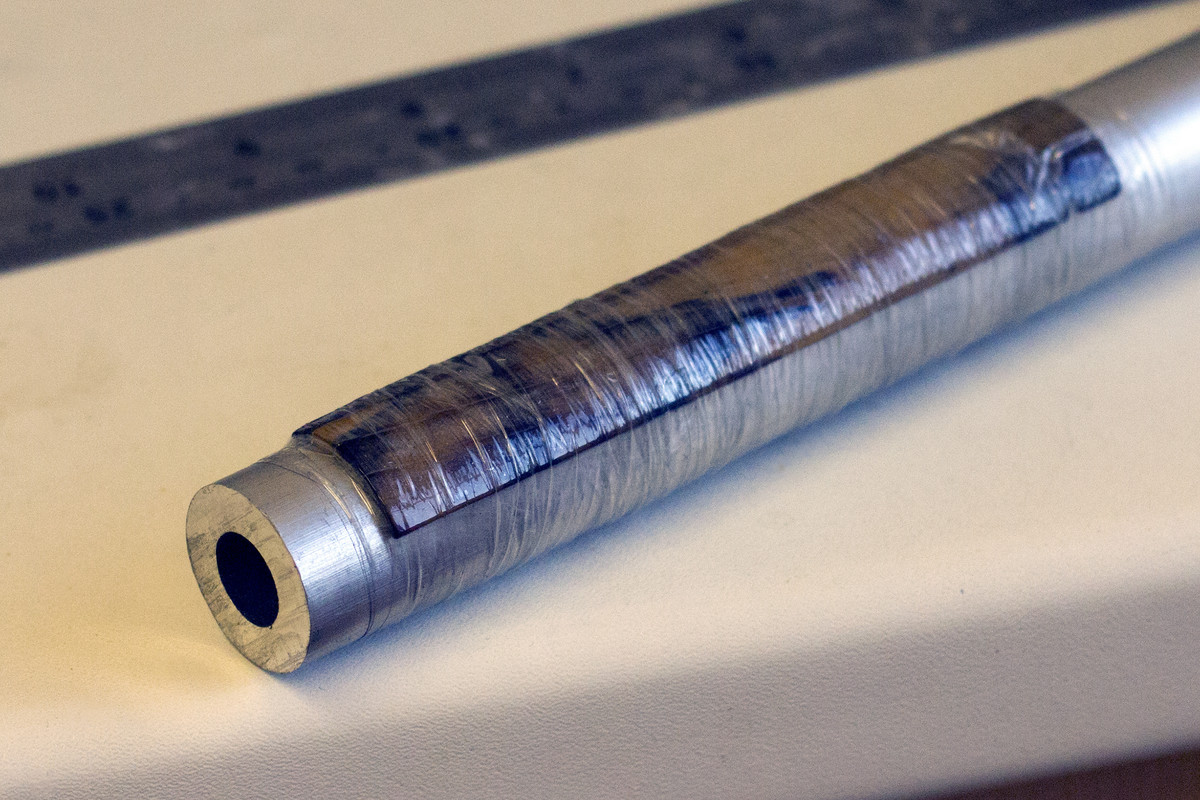

It still wasn't quite there, so, after a minute or two of 'refresher' steaming, I taped it rightly around a 25mm aluminium bar (to match the 12.5mm radius curves on the saber part) and it fit snuggly without any snapping noises. Very relieved at that point...






Then I followed the same process with the other 4 pieces.

The next sensible step, I think, will be to set up something to hold the pieces in shape while allowing some air to get to them so they can dry out without the risk of 'unbending' while that happens over a couple of days.

It was good learning, even though it didn't go as planned, and also gave me ideas for a better two piece 'press' that sits in vice jaws (kind of 2 L-shaped parts with a negative and positive that line up) and could be used for more wood bending and also to bend thin, flat metal pieces to a curve, both of which appeal to use as part of build processes in future and might open up some options that wouldn't be possible with curved/tubular metal.
8
Saber Modifications & Customs / Re: 2nd scratch built custom saber build log
« Last post by Sethski on October 21, 2018, 07:09:48 AM »
Yikes! Last updates April 4th...

- late thanks so much, Whosle, that's pretty much it for a large part of the process haha - fill in the empty spots til satisfied  :undecided:

This got kicked into the long grass for quite awhile and have just picked it back up in the last couple of weeks.

Made the main part of the midsection.

Idea is to have internal details on a battery holder tube, with the cut away part revealing semi-enclosed crystal chamber.









Also some pics of progression while making it:










9
Spacewindu / Re: Black Mamba for Pfockerchief
« Last post by basalter on October 20, 2018, 05:18:06 PM »
From the workshop that helped create the Killer Penny, then the Legacy tribute, to finally the Black Mamba, now with full electronics! Many years of craftsmanship come to fruition. What a wonderful high point in saber evolution. Congrats Exar Kun, on both a beautiful 'space ship' and continuing the superb work on this saber.
10
Lightsabers / Re: Corran Horn for Sale
« Last post by smcady on October 20, 2018, 02:05:18 PM »
Price drop.
